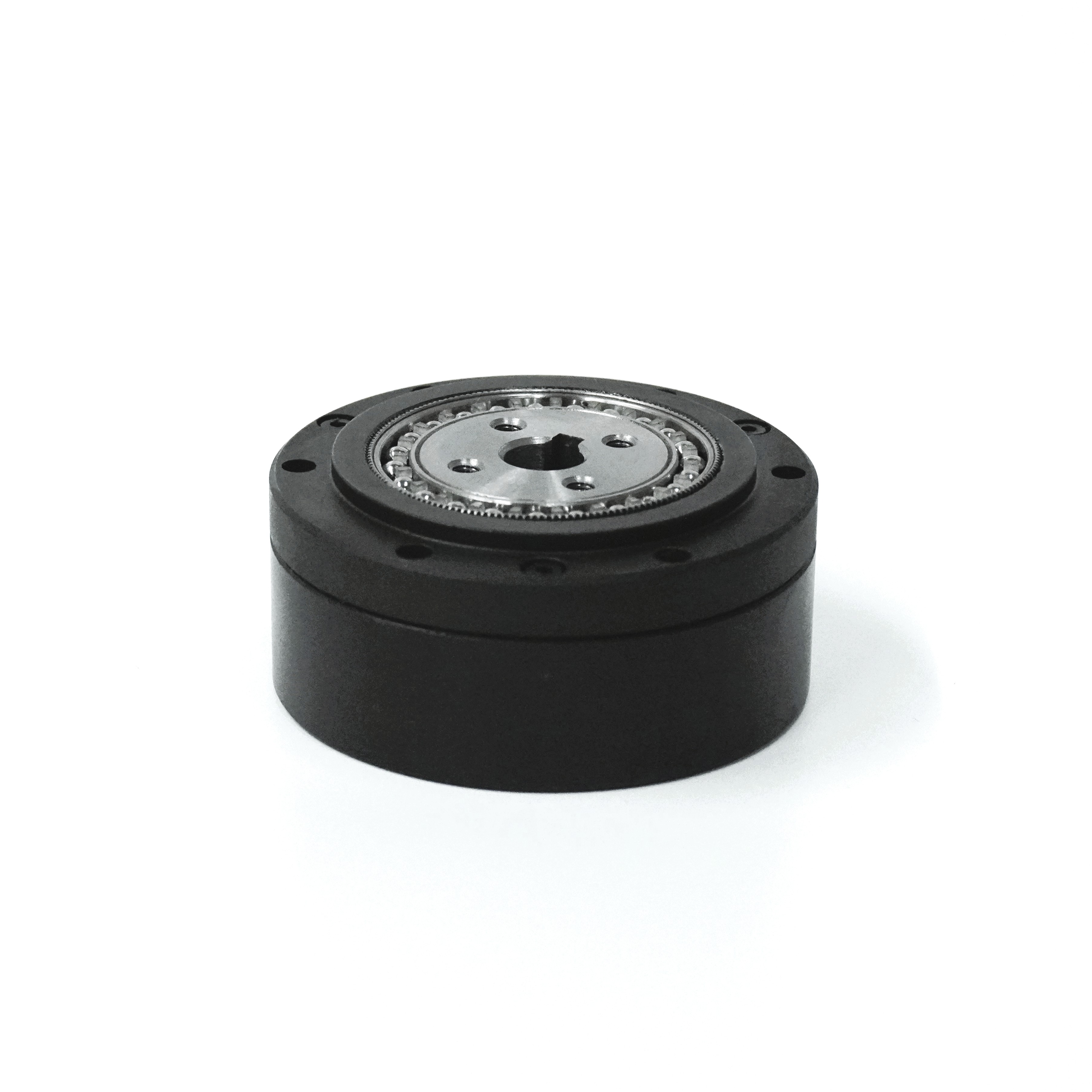

CD-32-50

CD-32-50

Short Description:

CD-C-C cup-type ultra-thin harmonic drive offers zero backlash, excellent positioning and rotational accuracy, and a simplified modular design. Ideal for robotics, servo actuators, and compact motion control systems...


  • Ratio: 50
  • Rated Torque at 2000rpm: 52Nm
  • Maximum Input Speed: 4000rpm
  • Backlash: ≤10 arcsec
  • Design Life: 9000 hours

Product Details

Product Tags

CD-C-C Cup-Type Ultra-Thin Harmonic Drive | Zero Backlash, High Precision { "@context": "https://schema.org/", "@type": "Product", "name": "CD-C-C Cup-Type Ultra-Thin Harmonic Drive", "description": "Ultra-thin, high precision harmonic drive with zero backlash and simplified modular structure. Designed for robotics, automation, and servo motion control applications.", "brand": "Harmonic Drive", "category": "Gear Reducer", "url": "https://www.yourdomain.com/products/cd-c-c-harmonic-drive", "features": [ "Zero backlash transmission", "High positioning accuracy", "Ultra-thin cup-type structure", "Simplified modular assembly", "Sealed compact design" ] } body { font-family: 'Segoe UI', Arial, sans-serif; margin: 0; padding: 0; color: #333; line-height: 1.6; } header, section { padding: 40px 10%; } header { background: #f2f6ff; border-bottom: 2px solid #e0e8ff; } h1, h2, h3 { color: #003399; } h1 { font-size: 2em; margin-bottom: 0.5em; } h2 { margin-top: 1.5em; } ul { margin-left: 20px; } table { border-collapse: collapse; width: 100%; margin-top: 20px; } th, td { border: 1px solid #ccc; padding: 10px; text-align: left; } th { background-color: #f7f9fc; } footer { background: #f2f6ff; text-align: center; padding: 30px 10%; margin-top: 40px; border-top: 2px solid #e0e8ff; } .cta { background-color: #003399; color: white; padding: 10px 20px; border-radius: 5px; text-decoration: none; } .cta:hover { background-color: #002266; } CD-C-C Cup-Type Ultra-Thin Harmonic Drive Zero Backlash | High Precision | Compact Simplified Assembly Product Overview The CD-C-C Cup-Type Harmonic Drive is an ultra-thin, lightweight, and simplified modular reducer designed for precision motion control and space-limited applications. Featuring zero backlash and excellent positioning accuracy, this model provides exceptional performance for robotics, servo systems, and automation equipment. Key Features Zero Backlash: Delivers precise torque transmission with no mechanical play. High Positioning Accuracy: Ideal for high-performance motion control systems. Ultra-Thin Design: Space-saving structure suitable for compact robotic joints. Simplified Modular Assembly: Easy to install and directly connect with servo motors. Sealed Construction: Reduces maintenance and ensures reliable long-term operation. Technical Advantages The CD-C-C harmonic drive utilizes a cup-type ultra-thin structure that minimizes axial length while maintaining excellent torque output. With optimized wave generator, flexspline, and circular spline design, it provides smooth, stable, and quiet performance. High torque-to-weight ratio Compact and lightweight design Long lifespan with low wear Stable and low-noise transmission Applications Collaborative and industrial robots (Cobots) Precision servo actuators Medical automation and laboratory robotics Optical and semiconductor positioning equipment Aerospace and defense motion systems Specifications Summary Model Type Structure Key Features CD-C-C Cup-Type Harmonic Drive Ultra-Thin Simplified Assembly Zero Backlash, High Accuracy, Compact Design Why Choose CD-C-C Harmonic Drive Zero Backlash Precision Transmission Ultra-Thin Cup-Type Structure Lightweight, High Torque Performance Simple Integration with Servo Motors Sealed, Maintenance-Free Design Contact us today to learn more or request a detailed technical datasheet.
