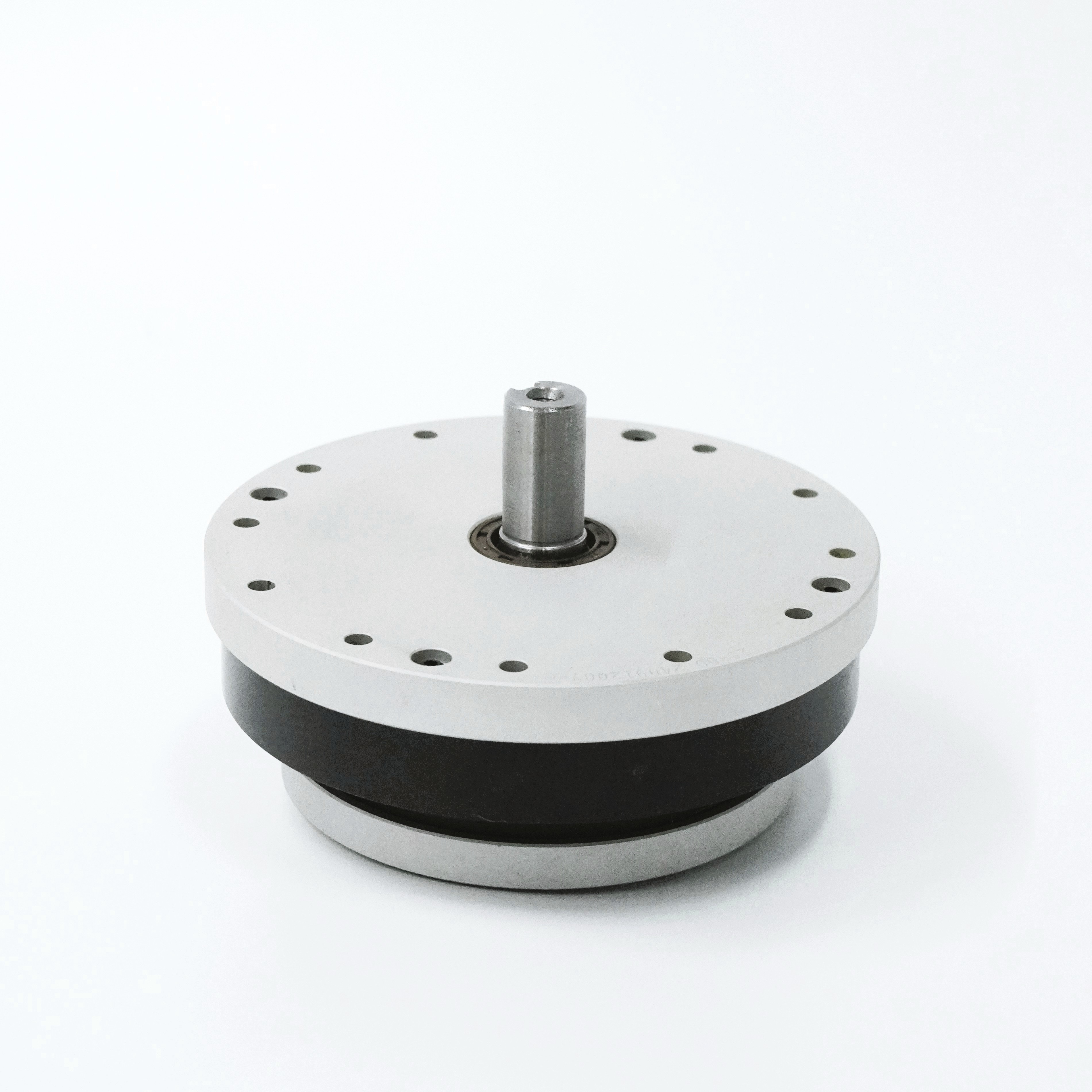

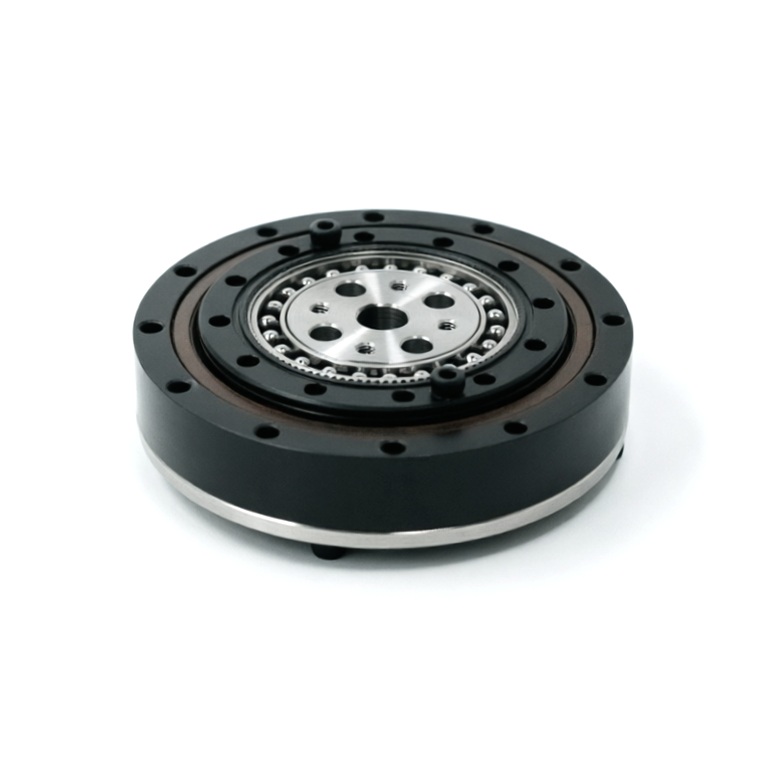

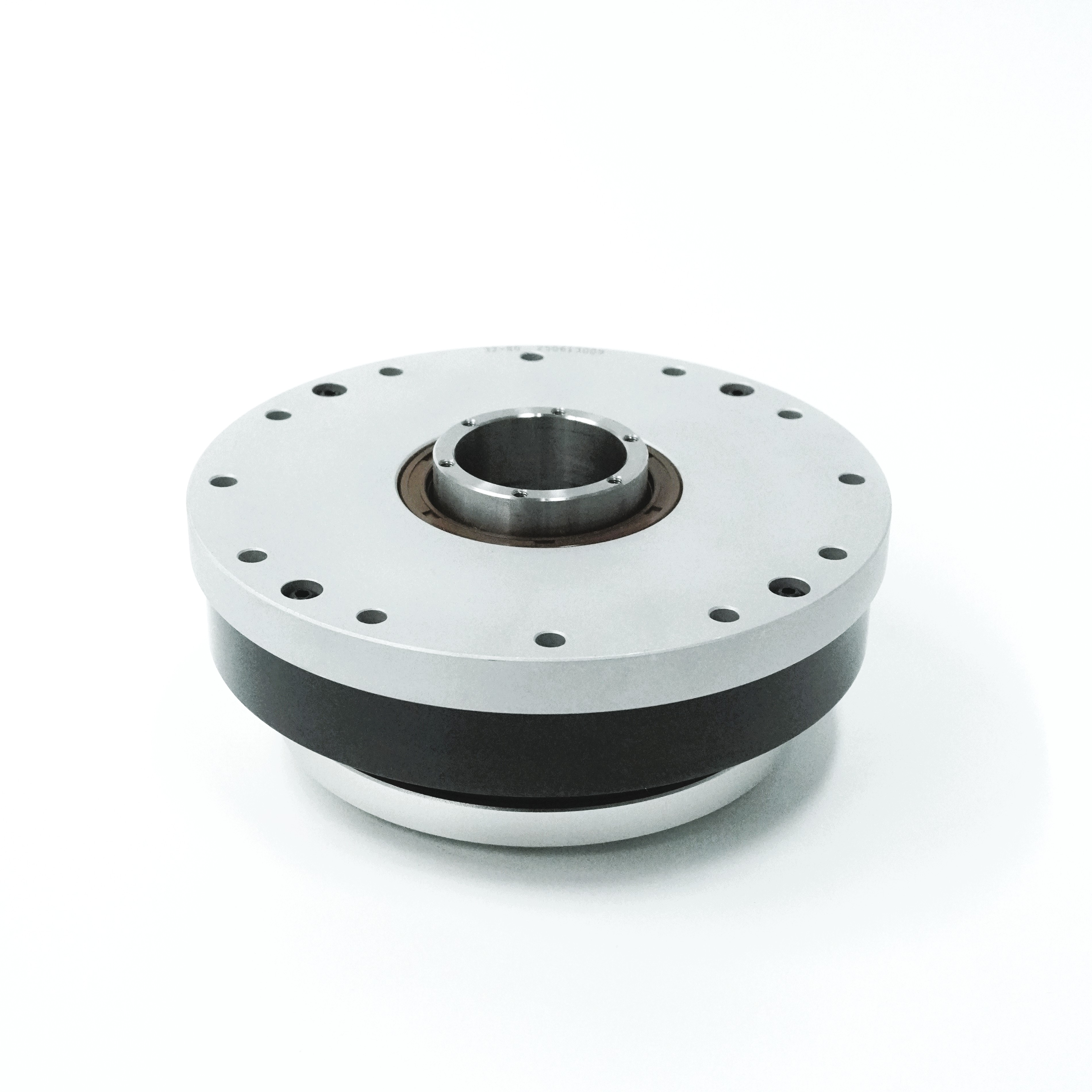

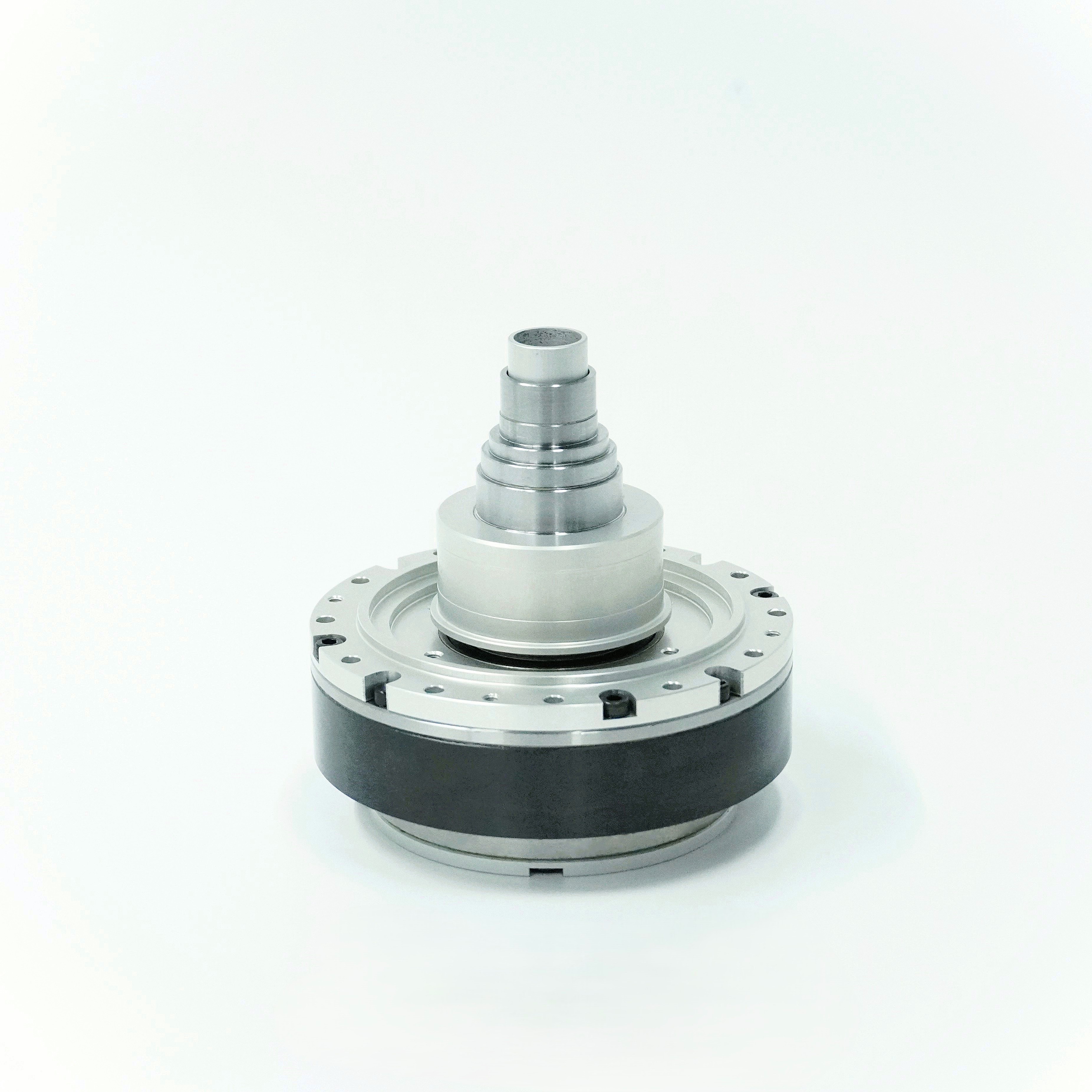

HS / HSG / HD Hat-Type Harmonic Reducers
HS / HSG / HD Hat-Type Harmonic Reducers
Hat-type harmonic reducers for robotic joints and high-rigidity output structures. HS/HSG support multiple configurations, while HD is a compact hat-type option for selected frame sizes.
Product Highlights
- Hat-type structure with high output rigidity for robot joints and precision automation.
- HSG reference backlash is <=10 arcsec; HD reference backlash is <=20 arcsec in the manual table.
- Ratio options commonly include 50, 80, 100 and 120 depending on series and frame size.
- Suitable for hollow-shaft layouts, servo actuators, rotary joints and automation modules.
Model and Ratio Selection
| Series | Frame sizes | Reduction ratios | Typical use |
|---|---|---|---|
| HS | 14 / 17 / 20 / 25 / 32 / 40 | 50 / 80 / 100 / 120 | robot joints and servo rotary axes |
| HSG | 14 / 17 / 20 / 25 / 32 / 40 | 50 / 80 / 100 / 120 | higher-rigidity hat-type applications |
| HD | 14 / 17 / 20 / 25 / 32 | 50 / 80 / 100 | compact hat-type reducer applications |
Performance Reference from Product Manual
Values below are representative series data extracted from the harmonic reducer product manual. Final selection should be confirmed by drawing, duty cycle, installation direction and written quotation.
| Model | Ratio | Rated torque ref. (Nm) | Peak torque ref. (Nm) | Input speed ref. (rpm) | Backlash | Life | Weight |
|---|---|---|---|---|---|---|---|
| HSG-14 | 50 / 80 / 100 | 6.7-9.5 | 21.9-34.2 | 8500 / 3500 | <=10 arcsec | 10000-15000 h | 0.41-0.71 kg |
| HSG-17 | 50 / 80 / 100 / 120 | 20-28 | 42-61 | 7300 / 3500 | <=10 arcsec | 10000-15000 h | 0.57-1.00 kg |
| HSG-20 | 50 / 80 / 100 / 120 | 35-49 | 73-108 | 6500 / 3500 | <=10 arcsec | 10000-15000 h | 0.90-1.55 kg |
| HD-14 | 50 / 80 / 100 | 3.6-5.3 | 11.8-18.6 | 8200 / 3500 | <=20 arcsec | 9000-10000 h | 0.35 kg |
| HD-17 | 50 / 80 / 100 | 11-16 | 23-39 | 7200 / 3500 | <=20 arcsec | 9000-10000 h | 0.45 kg |
Allowable Output Load Reference
| Model | Allowable moment (Nm) | Allowable axial load (N) | Allowable radial load (N) | Moment rigidity (x10^4 Nm/rad) |
|---|---|---|---|---|
| HS/HSG-14 | 74 | 1240 | 828 | 8.5 |
| HS/HSG-17 | 124 | 2220 | 1490 | 15.4 |
| HS/HSG-20 | 187 | 3120 | 2090 | 25.2 |
| HS/HSG-25 | 258 | 4660 | 3120 | 39.2 |
| HS/HSG-32 | 580 | 8170 | 5470 | 100 |
| HD-20 | 93 | 1562.2 | 1332.69 | 21 |
Selection Checklist
- Required output torque: rated torque, peak torque and duty cycle.
- Reduction ratio and input speed range.
- Backlash or transmission accuracy requirement.
- Motor flange, input shaft, output interface and available installation space.
- Operating temperature, lubrication condition, mounting direction and expected life target.
- CAD/PDF drawings can be prepared according to selected model and customer interface requirement.
MOQ, Samples and Delivery
MOQ can start from 1 piece for sample or project validation. Typical delivery time is 15-50 days depending on model, quantity, customization and stock status. OEM motor flange and interface adaptation are supported.
Source: WAVE TECH reducer product manual slides for HS/HSG/HD performance and allowable load tables.
