CS-14-100

CS-14-100

Short Description:

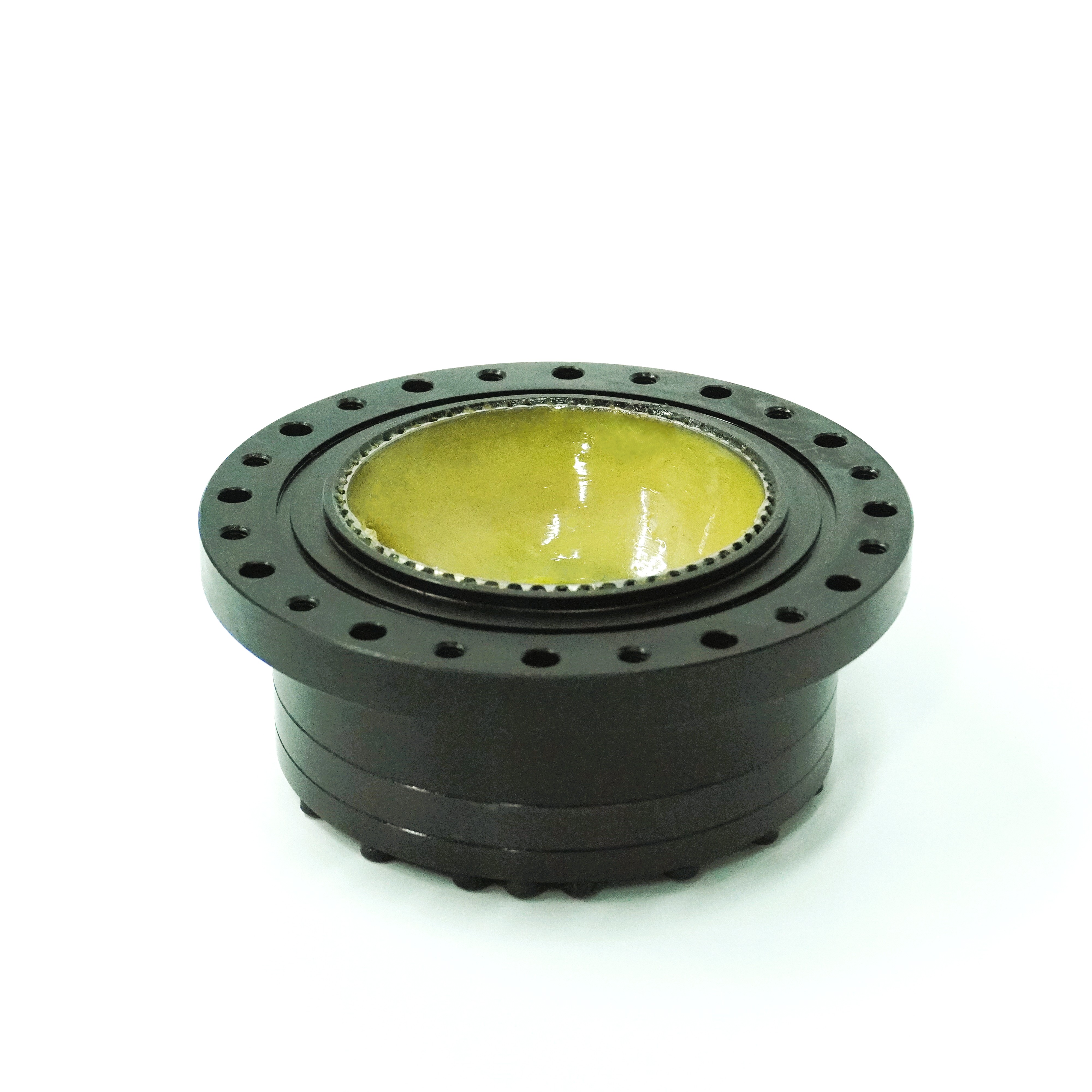

The CS-C-C / CSG-C-C harmonic drive features a compact cup-type structure with full tooth engagement for zero backlash and superior positioning accuracy. Perfect for industrial robots and high-precision servo systems...


  • Ratio: 100
  • Rated Torque at 2000rpm: 7.6Nm
  • Maximum Input Speed: 8500rpm
  • Backlash: ≤20 arcsec
  • Design Life: 13000 hours

Product Details

Product Tags

CS-C-C / CSG-C-C Cup-Type Harmonic Drive | Zero Backlash, High Precision { "@context": "https://schema.org/", "@type": "Product", "name": "CS-C-C / CSG-C-C Cup-type Harmonic Drive", "description": "Cup-type harmonic drive reducer with zero backlash, excellent positioning accuracy, and simplified modular design.", "brand": "Harmonic Drive", "category": "Gear Reducer", "url": "https://www.yourdomain.com/products/harmonic-drive-cs-c-c-csg-c-c", "features": [ "Zero backlash", "High positioning accuracy", "Direct motor shaft connection via keyway or set screw", "Simple sealed structure design" ] } body { font-family: 'Segoe UI', Arial, sans-serif; margin: 0; padding: 0; color: #333; line-height: 1.6; } header, section { padding: 40px 10%; } header { background: #f2f6ff; border-bottom: 2px solid #e0e8ff; } h1, h2, h3 { color: #003399; } h1 { font-size: 2em; margin-bottom: 0.5em; } h2 { margin-top: 1.5em; } ul { margin-left: 20px; } table { border-collapse: collapse; width: 100%; margin-top: 20px; } th, td { border: 1px solid #ccc; padding: 10px; text-align: left; } th { background-color: #f7f9fc; } footer { background: #f2f6ff; text-align: center; padding: 30px 10%; margin-top: 40px; border-top: 2px solid #e0e8ff; } .cta { background-color: #003399; color: white; padding: 10px 20px; border-radius: 5px; text-decoration: none; } .cta:hover { background-color: #002266; } CS-C-C / CSG-C-C Cup-Type Harmonic Drive Zero Backlash | High Precision | Simplified Modular Assembly Product Overview The CS-C-C / CSG-C-C Cup-type Harmonic Drive is a compact, high-precision gear reducer designed for applications requiring zero backlash, excellent positioning accuracy, and direct motor connection. With its simplified modular structure, this model offers exceptional performance for robotics, servo systems, and precision motion control environments. Key Features Zero Backlash: Ensures smooth and precise torque transmission with no lost motion. Excellent Positioning Accuracy: Ideal for high-precision motion control applications. Direct Motor Connection: Wave generator bore connects directly via keyway or set screw. Simplified Modular Design: Sealed cup-type structure ensures reliability and easy integration. Technical Advantages The CS-C-C / CSG-C-C harmonic drive adopts a cup-type configuration, minimizing axial length while maintaining torque capacity. Its wave generator, flexspline, and circular spline are optimized for stability and repeatability. High torque-to-weight ratio Compact and lightweight design Long service life and reduced wear Smooth operation and low noise Applications Industrial and collaborative robots (cobots) Precision servo systems Aerospace and defense mechanisms Optical and semiconductor equipment Automated machinery and positioning systems Specifications Summary Model Type Structure Key Features CS-C-C Cup-type Harmonic Drive Simplified Modular Zero Backlash, High Precision CSG-C-C Cup-type Harmonic Drive High-Torque Version Direct Motor Connection, Compact Design Why Choose CS-C-C / CSG-C-C Harmonic Drive Zero Backlash Precision Compact Modular Design Reliable Direct Motor Integration Maintenance-Free Performance Contact us today to learn more or request a detailed technical datasheet.
